Brinno BCC5000 Timelapse Construction Camera Mount Kit

Document Every Stage. Miss Nothing.

Construction sites don't wait — and neither should your documentation. The Brinno BCC5000 is a purpose-built outdoor time-lapse bundle that captures every pour, frame, and finish in stunning 4K UHD, so you have a complete visual record from groundbreak to handover.

Whether you're managing a multi-month infrastructure project or a fast-tracked commercial build, the BCC5000 deploys in minutes and runs unattended for weeks — even in the harshest Australian conditions.

What's in the Box

This all-in-one bundle includes everything you need to get shooting from day one:

• TLC5000 Time-Lapse Camera — 4K UHD, 1/1.8" Sony STARVIS 2 sensor, 118° wide-angle lens

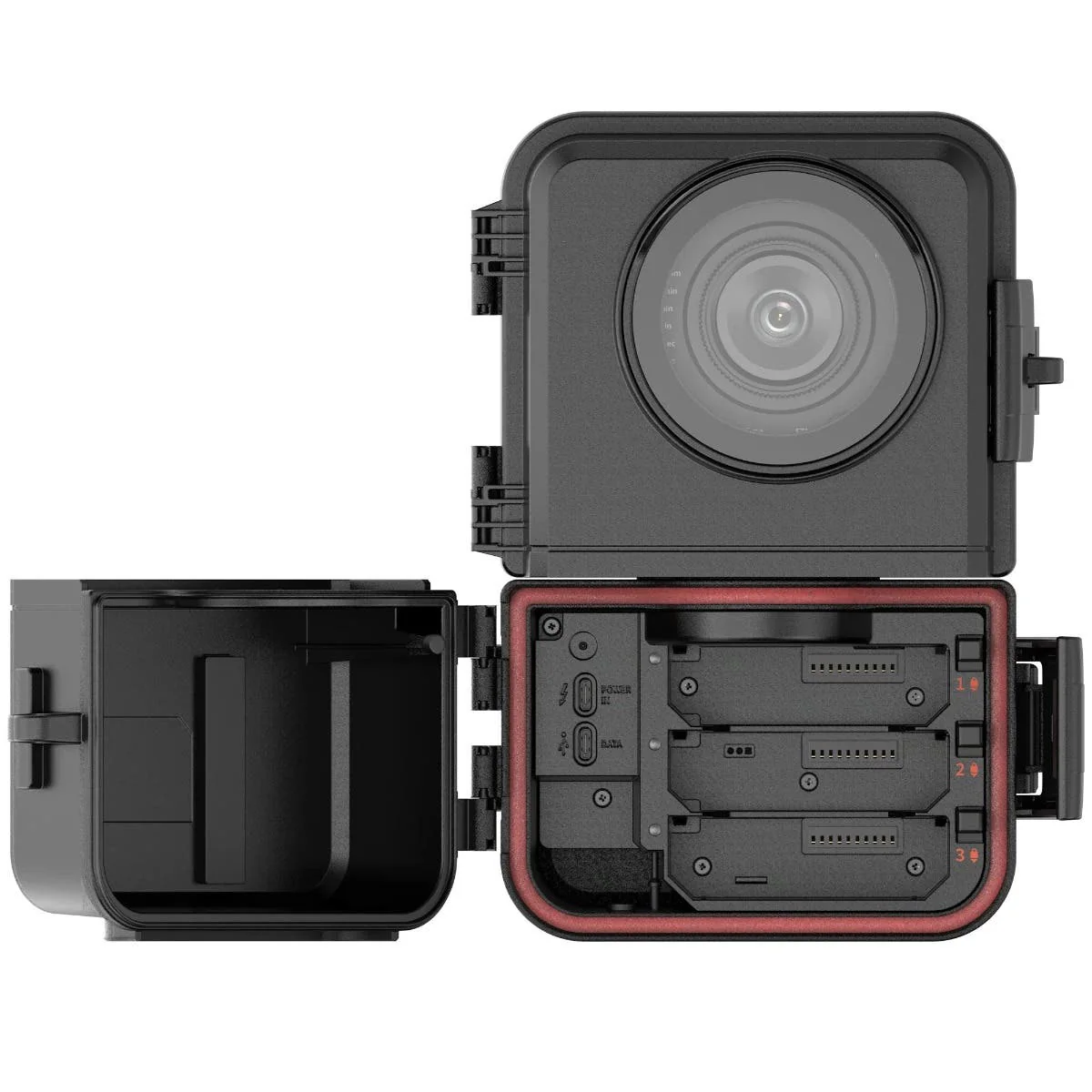

• ATH5000 Power Housing — IP65-rated, built to withstand dust, rain, and UV exposure
• 2× MRB1000 Rechargeable Battery Packs — 12,600mAh combined for extended field deployment
• ACC5000 Clamp Mount Kit — robust and adjustable for scaffolding, poles, or fencing

Engineered for Long-Duration Capture

At the heart of the system is the Sony STARVIS 2 sensor — the same technology trusted in professional security and broadcast cameras. It delivers exceptional low-light sensitivity and wide dynamic range, so your footage stays sharp whether you're shooting a sun-drenched site at noon or a twilight pour under floodlights.

• Customisable intervals from 0.5 seconds to 24 hours
• Schedule recording by day and time window — capture only what matters
• HDR and Night Mode for challenging lighting conditions
• Records to microSD (up to 256GB; Class 10/U1/V10 or faster recommended)

Stay Connected. Stay in Control.

Monitor and manage your camera remotely via the Brinno App (iOS & Android), using Wi-Fi (802.11b/g/n) or Bluetooth LE 4.0. Adjust intervals, review footage, and check battery status — all without setting foot on site.

Built for Autonomous Operation

The dual MRB1000 battery packs deliver 12,600mAh of combined capacity, and a USB-C port supports external power input. Pair with the Brinno Solar Power Kit (sold separately) for fully off-grid, continuous operation across months-long projects.

Key Specifications

• Resolution: 4K UHD
• Sensor: 1/1.8" Sony STARVIS 2
• Field of View: 118° diagonal
• Lens: 17mm fixed
• Interval Range: 0.5 sec – 24 hrs
• Housing Rating: IP65
• Battery Capacity: 12,600mAh (2× MRB1000)
• Connectivity: Wi-Fi 802.11b/g/n + Bluetooth LE 4.0
• Storage: microSD up to 256GB (not included)
• Output Format: MP4
• External Power: USB-C
• Solar Compatible: Yes (kit sold separately)
